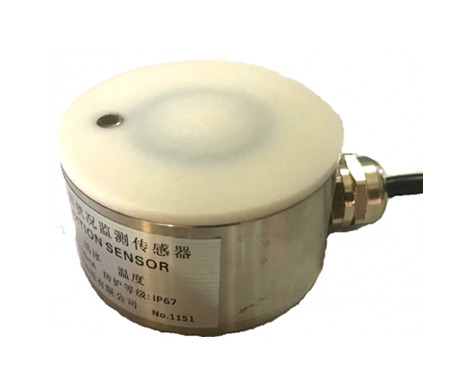

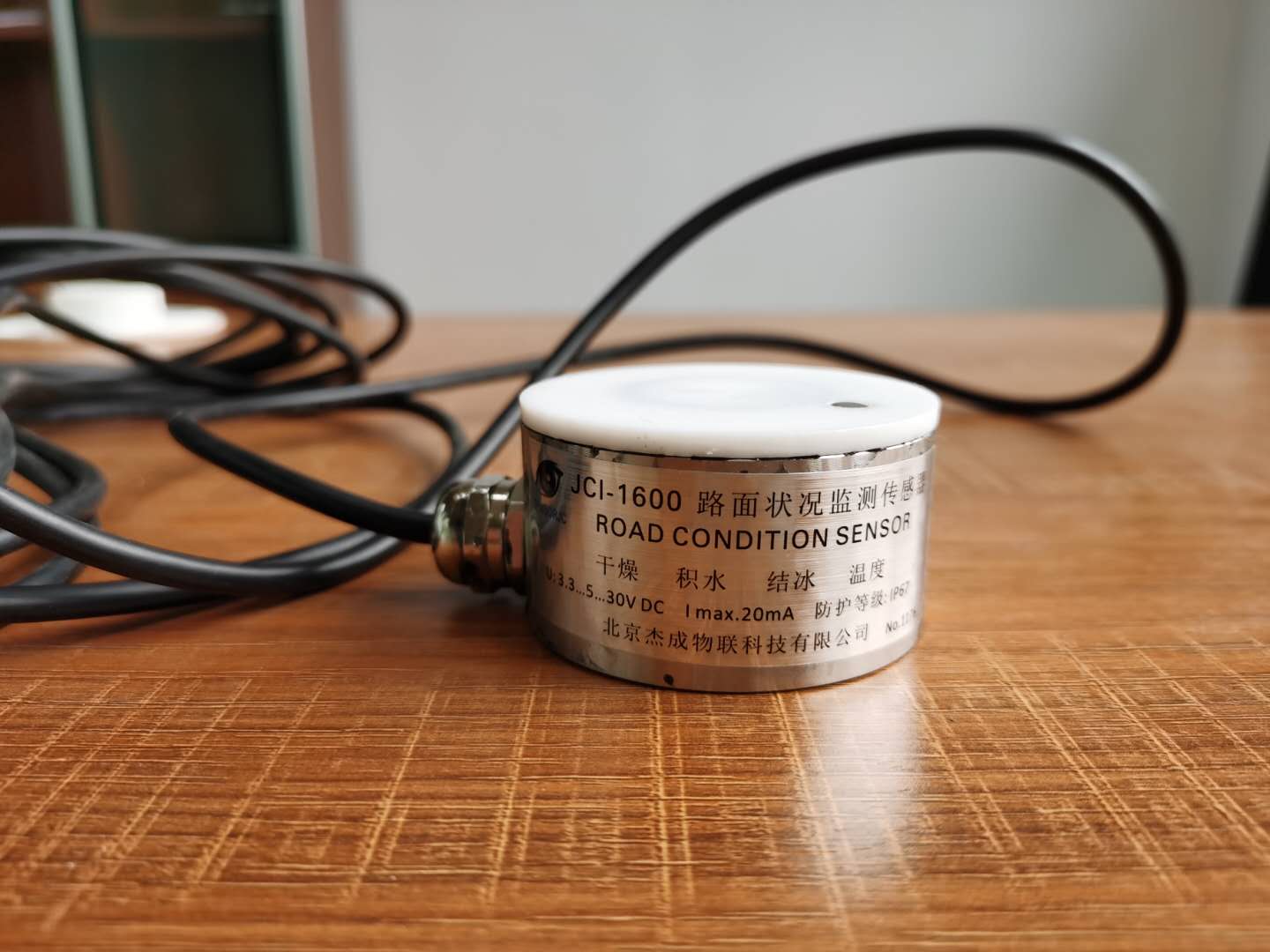

JCI-1600 of Road condition monitoring sensor

Main features


Using microwave perturbation technology
warning when icing or before icing
Multi-parameter fusion algorithm improves detection accuracy Pavement condition: dry, accumulated water, ice, the thickness of ice,  alarming when high temperature
Improving Road Safety Factor The sensor is small in size, convenient to install with many methods
Unique structural design can resist ultra-strong pressure and is not easy to damage. The Best Choice of Various De-icing Systems

Summarize


Icing on-line monitoring sensor of JCI-1600 has the characteristics of simple structure,convenient installation, and strong anti-interference ability.It can be used for pavement icing monitoring of expressways, airports, bridges, urban pavements and the like.And it is an important solution for Internet of Things applications such as intelligent transportation, intelligent cities and the like.

Technical parameter


Test parameters: icing, icing thickness, drying, moisture/accumulated water, snow, road surface temperature, high temperature warning
Icing detection range: 0.2mm~10mm Minimum icing thickness: 0.2mm Maximum icing thickness: 10mm Icing alarm thickness value: 0.2mm~10mm (adjustable) Measurement accuracy: 2% FS
Water film height: 0~4mm (optional) Measurement accuracy: ±0.1mm Communication mode: RS485(modbus RTU)
Operating temperature: -40℃~85℃Storage temperature: -55℃~85℃ Operating voltage: 3.3V DC or 5V~30V DC Operating humidity: 0~100%RH Overall dimension: φ Φ60*34mm Protection grade: IP67

Application field


Freeways, airports, bridges Urban interchange Scenic road mountainous road New Road De-icing System
